When industrial design meets functional basics, a simple mechanism emerges that is as elegant as the most intricate of machines - the shower diverter. This marvel of plumbing shape-shifts your bathroom space into an all-purpose grooming area, making your shower stall double up as a bathing space as well as a sauna. The focus of this blog is to delve deep into the nuances of the humble shower diverter, shedding light on its types, installation, mechanism and troubleshooting.

The Magic Behind the Shower Diverter

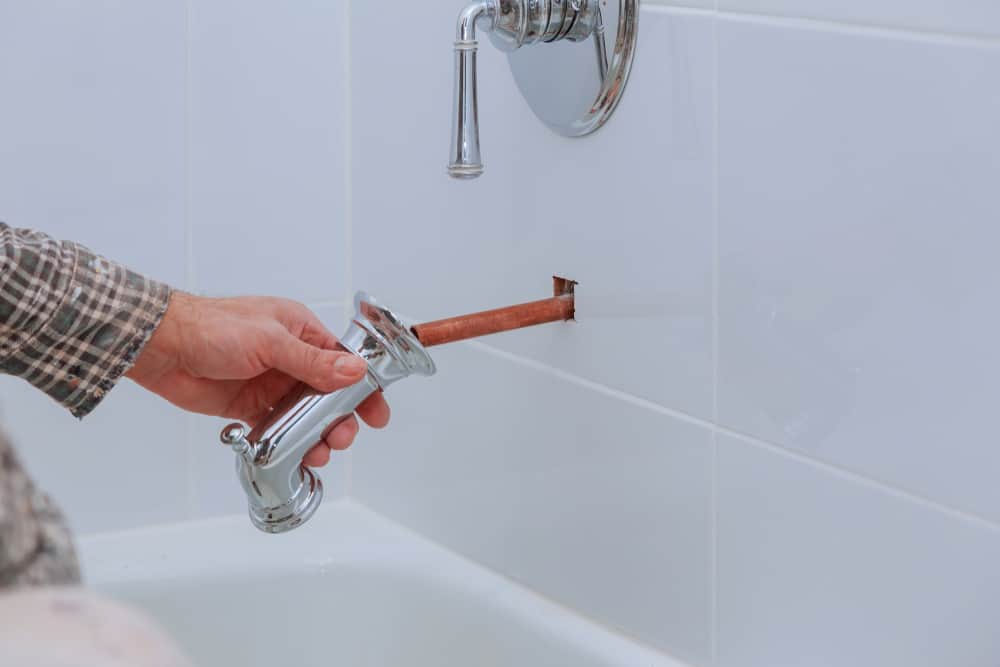

The shower diverter, a small component with a big job - directing water where it needs to go, either to your tub spout or the shower head. Either lever-based or knob-based, when engaged, this magical device, located within the tub spout or mounted on the wall, sends water streaming downwards or upwards as per your preference.

Working of the Shower Diverter

The underlying principle of the shower diverter is simple pressure dynamics. When the diverter valve is inactive, water follows the path of least resistance, and flows out of the bathtub spout. However, once you pull the knob or flip the lever, the diverter blocks this path, forcing water to take the less resistance route through the smaller pipes that lead up to the showerhead.

Spotlight on Shower Diverter Types

Before you consider getting a shower diverter installed, it's important to know the variants available. Each comes with its unique mechanism, fitting and operative style:

  • Three Valve Diverter: As the name suggests, this type of diverter has three valves - one for controlling the water temperature, and the other two for directing water flow either to the shower head or the bathtub.
  • Two Valve Diverter: Slightly less complicated than its three-valve counterpart, this diverter allows switching between shower head and bathtub using two valves.
  • T-bar Diverter: A user-friendly diverter form with a single switch to control the direction of the water flow.

Installing a Shower Diverter

Installing a shower diverter calls for a bit of technical knowledge about plumbing. However, with careful instructions and the right tools, you can do this task yourself. Here are the steps for a basic installation:

  • Shut off the water supply.
  • Disconnect the existing shower head and replace it with the diverter.
  • Connect one end of the new shower hose to the diverter and the other to the hand-held shower head.
  • Turn on the water supply and check for any leaks.

Troubleshooting your Shower Diverter

Over time, you might experience issues like a leaking diverter or water not being fully diverted. Don't fret - these are common occurrences that you can manage by yourself. Simple steps like turning the diverter valve clockwise or counter-clockwise or replacing a worn-out rubber washer can often fix the issue.

Furthering the Diverter Discourse

Shower diverters are indispensable components of modern bathrooms. From enriching your showering experience to saving space and improving convenience, they serve a multitude of purposes. Proper care and regular maintenance will ensure your shower diverter works flawlessly, contributing to more relaxing and refreshing bath times.

FAQs about Shower Diverters

How Does a Shower Diverter Work?

A shower diverter essentially works by redirecting the flow of water from the faucet to the shower head. When you turn the diverter lever or pull the diverter knob, it blocks the path of water to the faucet and reroutes it to the showerhead instead, resulting in water coming out of the shower instead of the faucet.

Are there Different Types of Shower Diverters?

Yes, there are mainly three types of shower diverters: a tub spout diverter, a two-valve diverter, and a three-valve diverter. A tub spout diverter is built into the tub spout itself. A two-valve diverter uses two valves, one to control the water flow and the other to direct it to either the tub or the shower. A three-valve diverter has two controls for water temperature and one to divert water between the tub and the shower.

How to Install a Shower Diverter?

The installation of a shower diverter requires a certain level of plumbing knowledge. After taking exact measurements, carefully fit your diverter in place in the allotted section on your faucet or in the wall. Then, install any accompanying pipes and connect them to your diverter, following the instructions provided by your shower diverter manual. It's usually recommended to hire a professional plumber to ensure the installation is done correctly and safely.

How to Fix a Leaking Shower Diverter?

If your shower diverter is leaking, it may simply need a good clean or it might require replacing. To clean it, disassemble the diverter and clean all its parts with vinegar and a small brush. If that doesn't solve the problem, you may need to replace the faulty parts, often the washer or seal. If a simple repair doesn't fix the issue, it's recommended to replace the entire shower diverter.

Can a Faulty Shower Diverter Cause Low Water Pressure?

Yes, a faulty shower diverter can be one of the reasons behind low water pressure. If the shower diverter is not properly diverting water from the tub spout to the showerhead, it can result in reduced water pressure. Besides, mineral buildup or a stuck valve in the diverter can cause the same issue.

Can a Single Handle Shower Diverter be Replaced With a Double Handle?

Yes, it's technically possible to replace a single handle shower diverter with a double handle. However, this will require a bit of plumbing adjustment and potential modifications to the surrounding tile or wall, so it's usually recommended to have a professional handle the task.

How Long Does a Shower Diverter Last?

Shower diverters can last a long time with proper maintenance, often upwards of 10 to 15 years. However, wear and tear, along with factors like water quality and usage frequency, can impact their lifespan adversely. Regular maintenance and cleaning can help prolong the life of your shower diverter.

Pros and Cons of Shower Diverter

Pros of Shower Diverter

Improved Functionality

A noteworthy advantage of having a shower diverter installed in your bathroom is the improved functionality that it brings about.

  • The shower diverter allows a user to switch water flow between multiple sources, such as from a bathtub faucet to a showerhead.
  • This function is particularly useful for people who want the option to either take a shower or a bath.

Saves Space

Shower diverters are particularly beneficial for small bathrooms where space is at a premium.

  • Instead of having separate fixtures for the shower and the bathtub, a single unit with a shower diverter conserves space.
  • The absence of excessive piping and fixtures contributes considerably to a neat and uncluttered aesthetic in the bathroom.


While there may be some costs associated with the initial installation of a shower diverter, it can prove to be an economical choice in the long run.

  • Considering that you are combining two bathroom fixtures into one, the material and installation costs are lower.
  • Additionally, if you encounter issues such as a leak, you only have to deal with one component rather than multiple ones.

Cons of Shower Diverter

Installation Challenges

While many homeowners are able to install a shower diverter on their own, complications can arise.

  • Installing a shower diverter might necessitate altering the existing plumbing, making it a daunting task for those unfamiliar with plumbing work.
  • Professional installation might be necessary in such cases, raising the costs.

Failure or Malfunction

Like any mechanical device, a shower diverter may fail or malfunction over time.

  • If the diverter becomes stuck or fails to fully switch the water flow, you may have water flowing out of both the tub faucet and showerhead, which wastes water.
  • This kind of malfunction often requires replacing the entire fixture, which can be both time-consuming and costly.

Limited Versatility

While a shower diverter does offer some versatility in a bathroom, it might not satisfy every user's preferences.

  • Some people appreciate having separate water pressure and temperature controls for their shower and bathtub. This level of customization is not possible with a typical shower diverter.
  • Moreover, the simple presence of a shower diverter does not allow the user to make use of the shower and bathtub simultaneously, which can be a disadvantage for some.

Style Considerations

Visually, some homeowners might not prefer the look of a shower diverter, as compared to separate fixtures.

  • A shower diverter might not fit in with the sleek or minimalist aesthetic that some people prefer for their bathrooms.
  • Furthermore, the attractive designs and finishes available for separate shower fixtures can't always be mimicked in dual fixtures with diverters.


Upgrading your bathroom setup with a shower diverter can be a game changer. It provides flexibility and control over your shower experience, allowing you to switch between different types of faucets and shower heads depending on your mood. From rainfall showers to hand held showers, a diverter makes it all easily accessible, truly transforming your daily routine.

Choosing the right shower diverter matters a ton, though. You need to consider its build quality, ease of use and compatibility with your existing shower setup. Whether it’s a three-way diverter for multiple shower heads or a simple two-way for a standard head and hand shower combo, make sure you pick one that fits your needs and doesn’t compromise on durability.

So, that's a wrap on shower diverters. Their role might seem small, but their impact is massive. After all, a great shower sets the tone for your whole day, and a reliable shower diverter makes that possible. Are you ready to take your shower experience to the next exciting level?
